WhisperKOOL Blow-Through 8000 – Omega 110V Condenser
SKU: WKBT8000-OMEGA-FD
WhisperKOOL Blow-Through 8000 – Omega 110V Condenser in Omega Hybrid 110V Condenser
WhisperKOOL Blow-Through 8000 – Omega 110V Condenser in Omega Fully Ducted 110V Condenser
WhisperKOOL Blow-Through 8000 – Omega 110V Condenser in Omega Ductless 110V Condenser
WhisperKOOL Blow-Through 8000 – Omega 110V Condenser
WhisperKOOL Blow-Through 8000 – Omega 110V Condenser
WhisperKOOL Blow-Through 8000 – Omega 110V Condenser
WhisperKOOL Blow-Through 8000 – Omega 110V Condenser
WhisperKOOL Blow-Through 8000 – Omega 110V Condenser
WhisperKOOL Blow-Through 8000 – Omega 110V Condenser

WhisperKOOL Blow-Through 8000 – Omega 110V Condenser

SKU: WKBT8000-OMEGA-FD
Regular price
Price :
$7,905.00
/
Est. ship date
Need Help? Call and Talk to an Expert Now

Description

The WhisperKOOL Blow-Through Series is a compact split-system wine cellar cooling unit designed for discreet applications in custom wine cellars, wine walls, cabinets, and built-in cabinetry. Engineered for installation flexibility, it supports ducted, ductless, and hybrid airflow configurations for soffits, adjacent mechanical spaces, and in-cellar installations. Configurable airflow direction, quiet centrifugal blower operation, liquid-temperature bottle probe technology, and service-friendly access deliver reliable climate control while keeping the system hidden within the design. Compatible with WhisperKOOL ΩMEGA 110V and 220V H.E. condensing units, the Blow-Through Series is ideal for residential and commercial wine storage where aesthetics, flexibility, and performance matter.

Specifications:

  • Weight: 86 lbs (Condenser) 65 lbs (Evaporator)

What's Included:

Installation Guide
Bottle Probe
Self-Contained Cooling System
Advanced Digital Controller
Maintenance Kit

Features:

  • Built-in condensate pump system
  • KDT digital controller/thermostat with 50-ft. cable
  • Variable speed fan switch for precise airflow management
  • Optional ducted, ductless, or hybrid airflow configurations

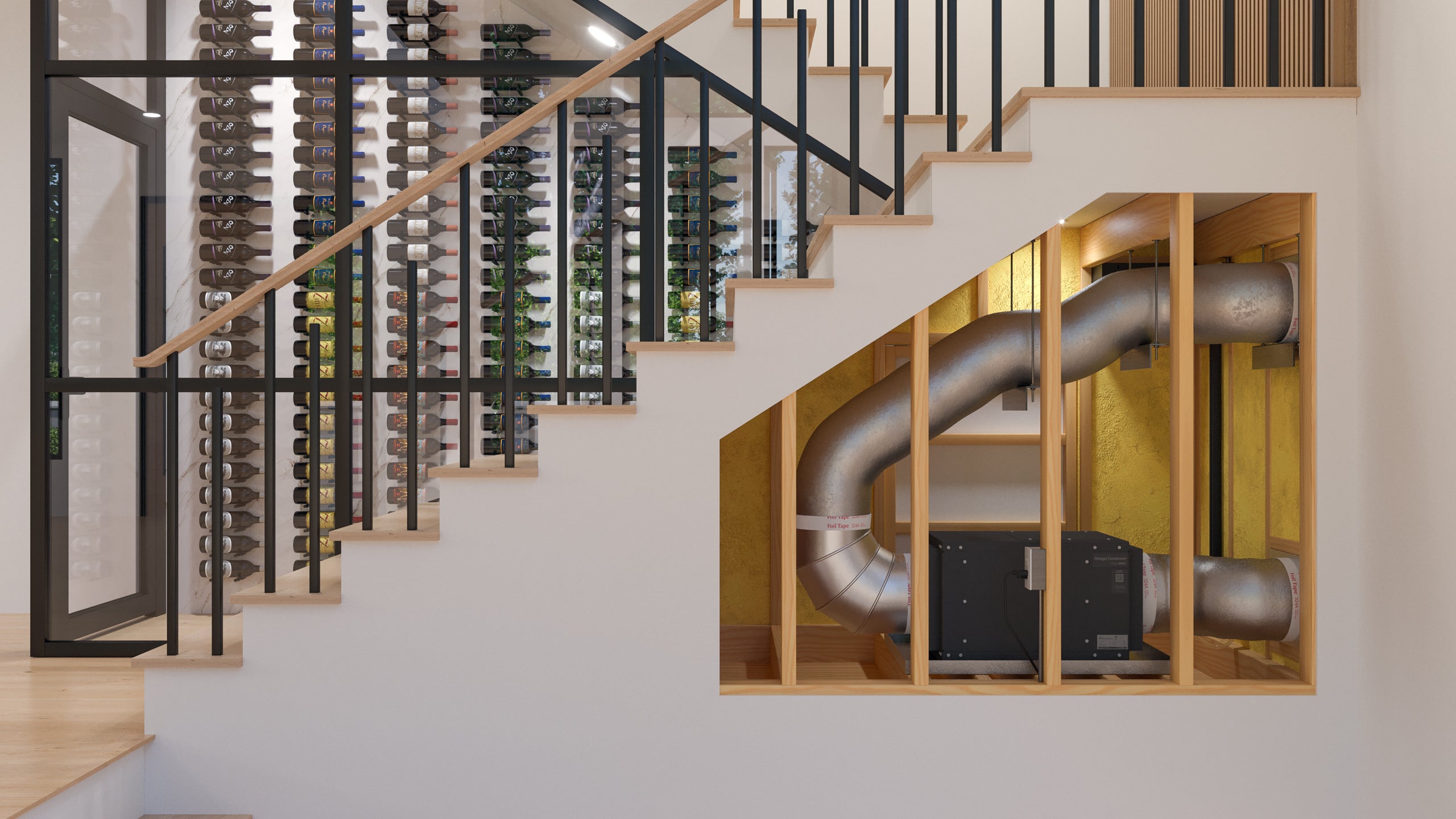

  • Supports stealth installations so system is invisible in cellar

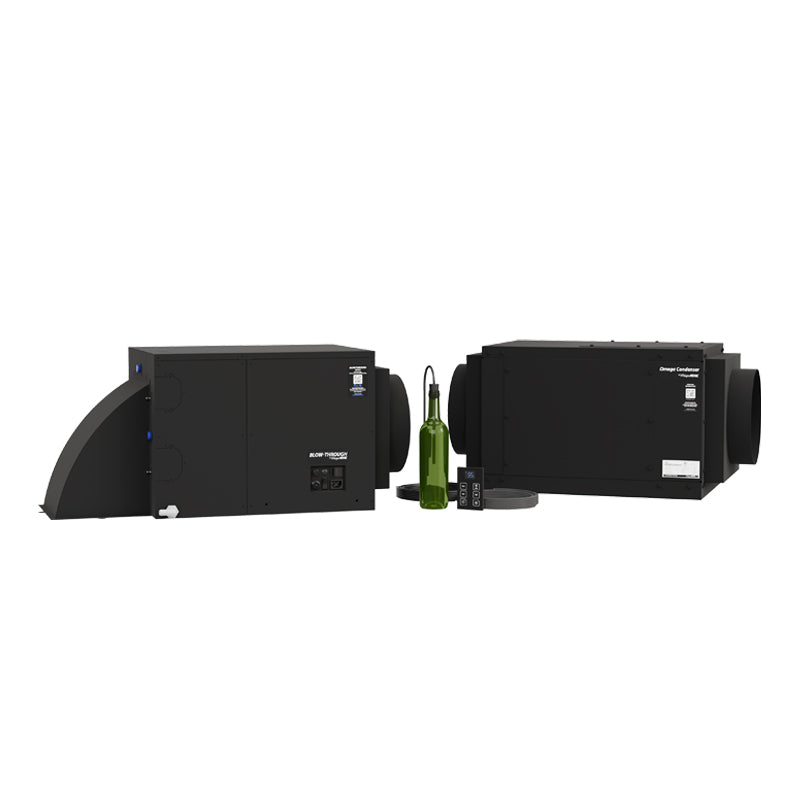

Blow-Through 8000

Features:

  • Built-in condensate pump system
  • Dual-side service access for easier maintenance
  • Flare fittings allow quick, brazing-free installation
  • KDT digital controller/thermostat with 50-ft. cable
  • Variable speed fan switch for precise airflow management
  • Available with either 110V or 220V condenser options
  • Optional ducted, ductless, or hybrid airflow configurations
  • Supports stealth installations so system is invisible in cellar
  • E-coated coils for improved performance & system longevity
  • Liquid-temperature-measuring bottle probe for precise control

Airflow Configuration

  • Ducted Airflow Kit (2 Duct Plenums)
  • Ductless Airflow Kit (2 Air Deflectors)
  • Hybrid Airflow Kit (1 Air Deflector, 1 Duct)

Notes:

  • A qualified HVAC-R technician is required for installation. Failure to have the system installed by a qualified technician will void the warranty.
  • By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V thermostat to run the equipment.

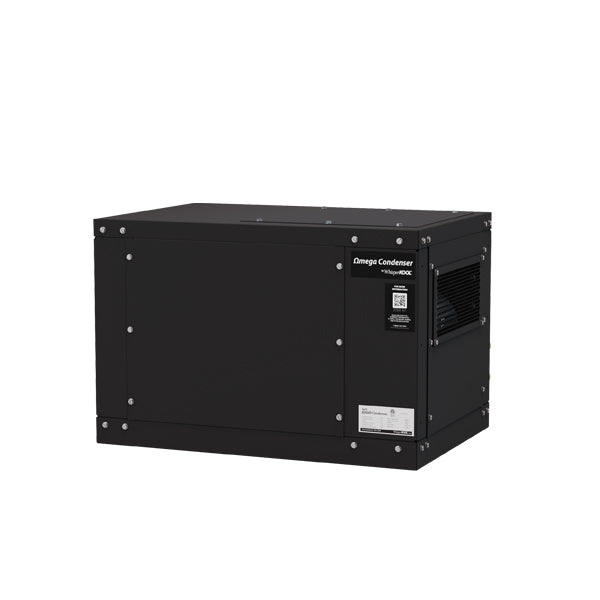

ΩMEGA 110V H.E. CONDENSER

Features:

  • ECM Centrifugal Blowers
  • Equipped with ECM centrifugal blowers that automatically adjust speed to optimize heat discharge, ensuring top-tier energy efficiency and consistent performance.
  • QR Code for Installation & Maintenance
  • Each ΩMEGA 110V H.E. Condenser includes a QR code for quick access to comprehensive installation and maintenance guides, streamlining the setup and servicing process.
  • Flare Fittings
  • User-friendly flare fittings simplify installation, eliminating the need for brazing and reducing overall setup time.
  • Operational Range
  • Designed to operate reliably in a wide range of ambient temperatures, from -20°F to 120°F, making it suitable for various environments.
  • Cold Ambient Protection
  • Features such as the receiver heater and compressor heater strap protect the condenser in cold conditions, ensuring optimal performance across different climates.
  • Vibration Isolation Mounts
  • Advanced vibration isolation mounts minimize noise and vibration from the compressor, ensuring quiet operation.
  • Ultra-Quiet Operation
  • Vibration isolation mounts and the optional ducting kit minimize noise, delivering an ultra-quiet cooling experience ideal for residential and commercial wine cellars.

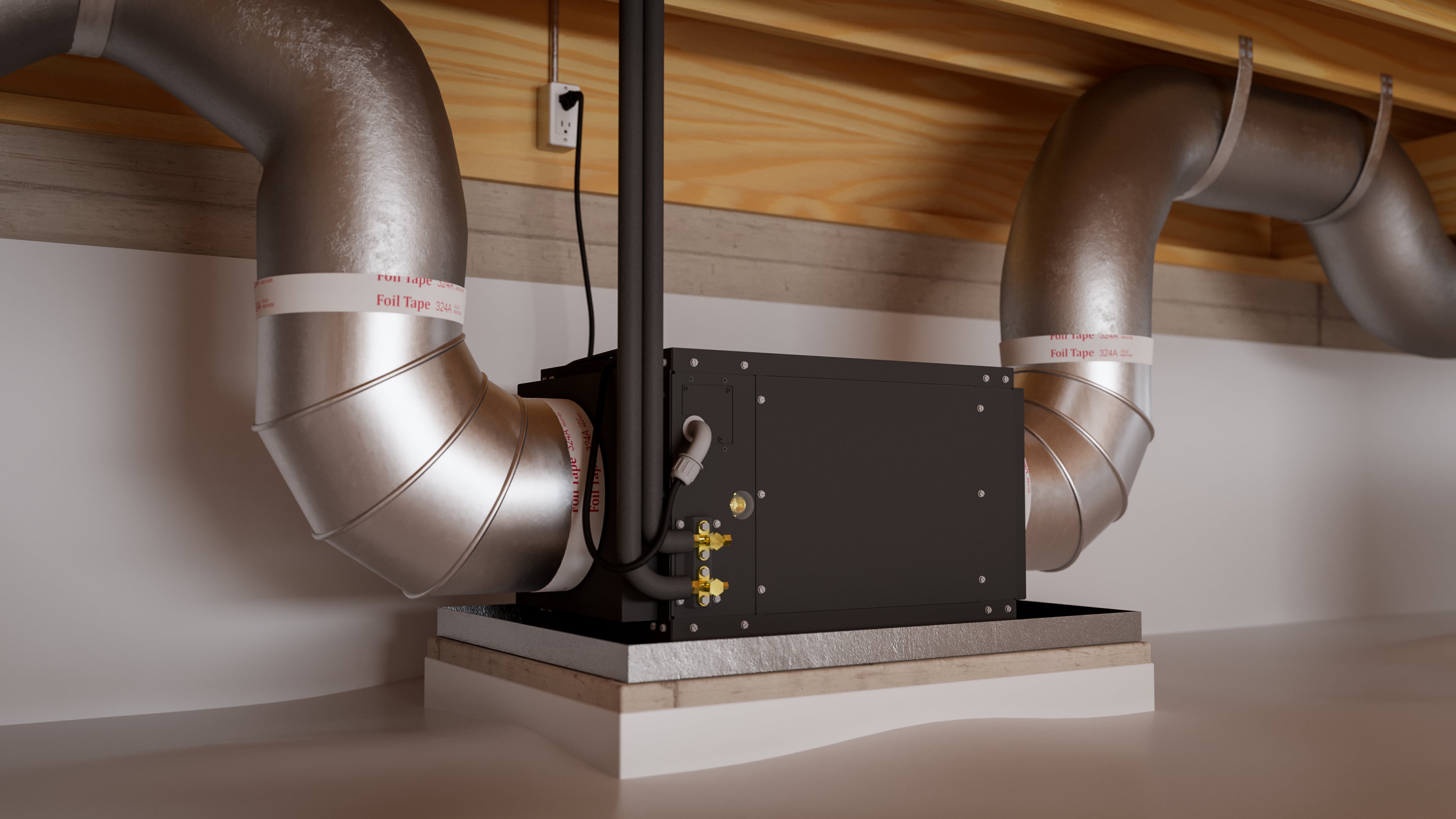

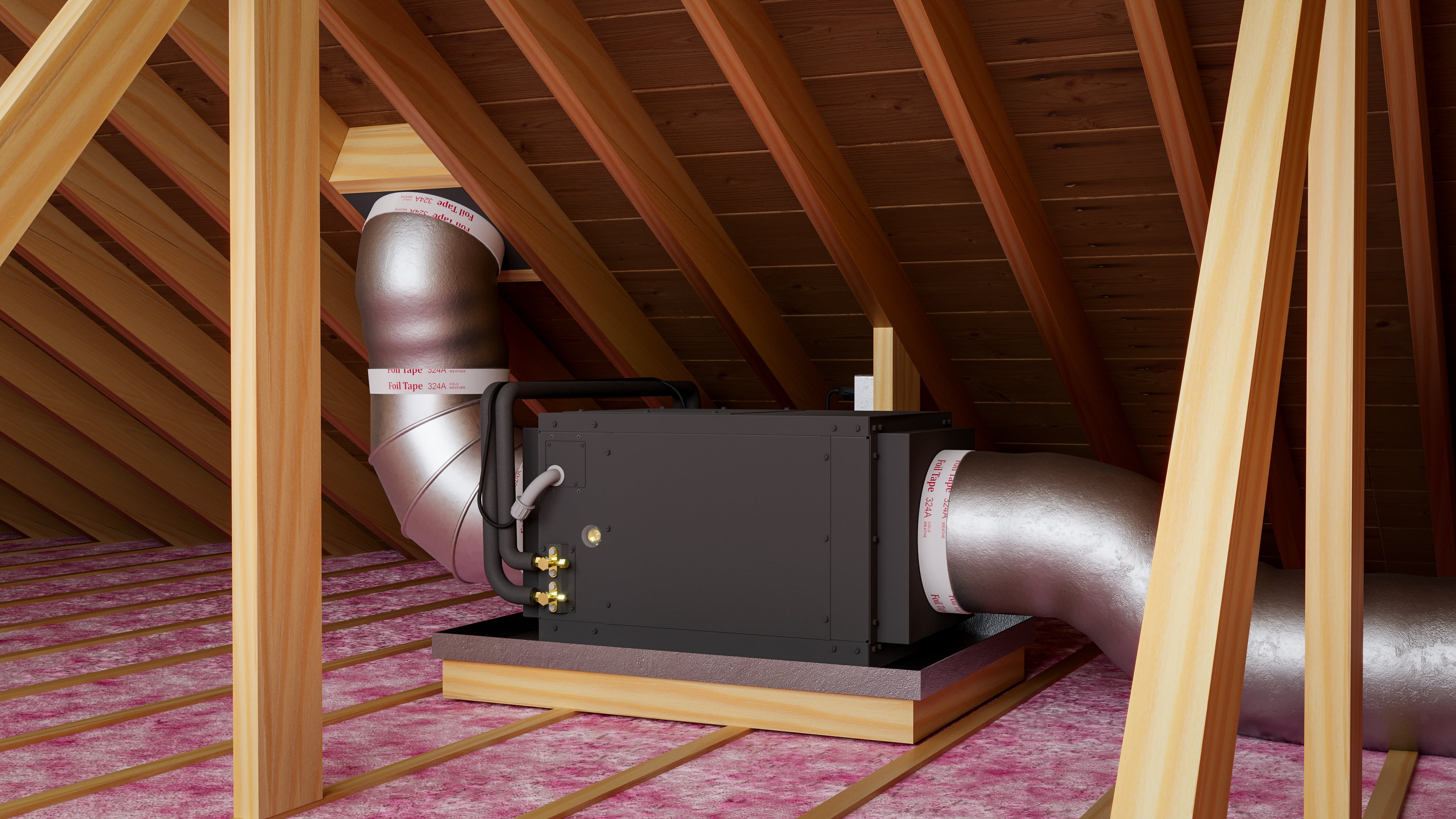

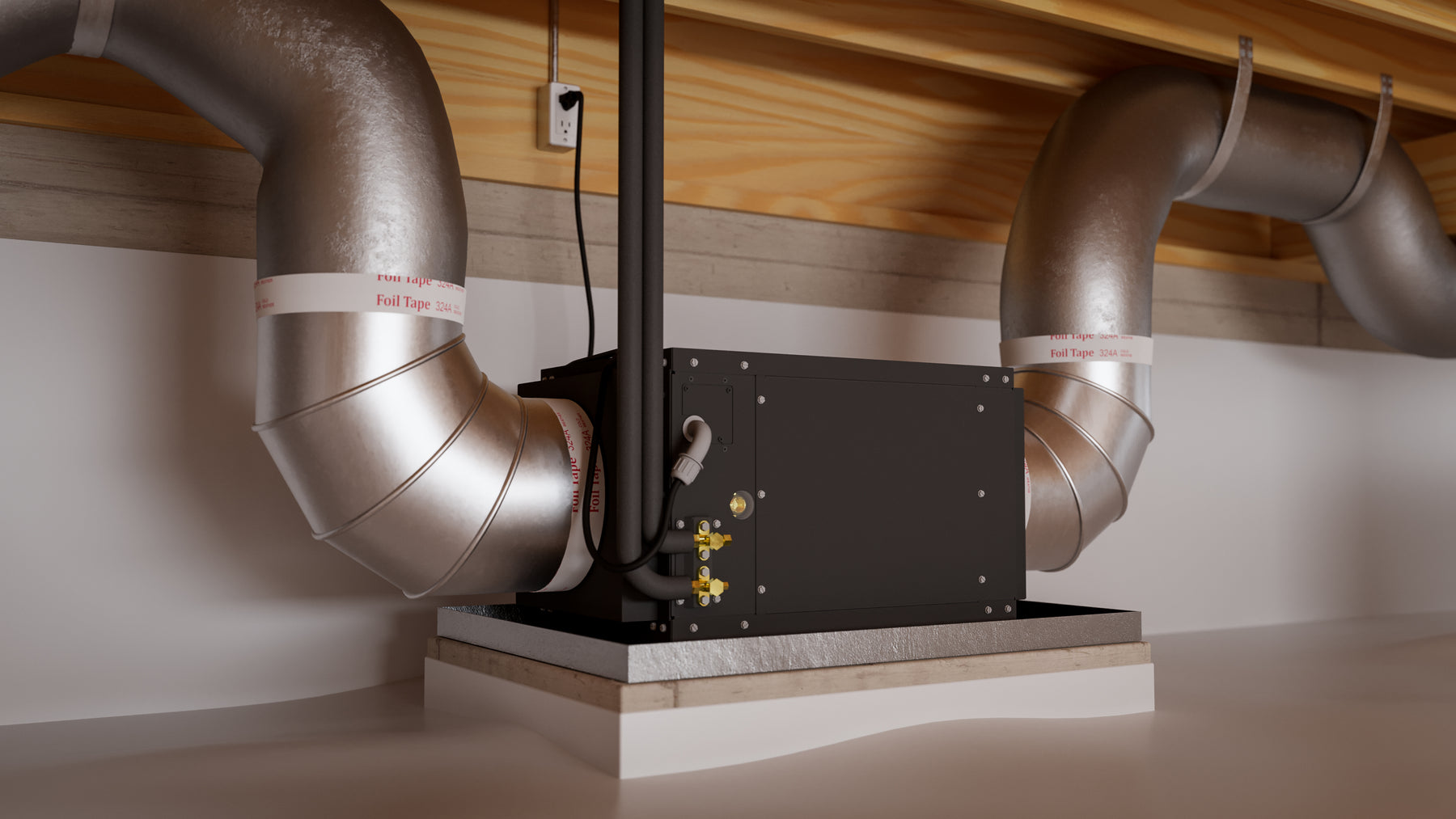

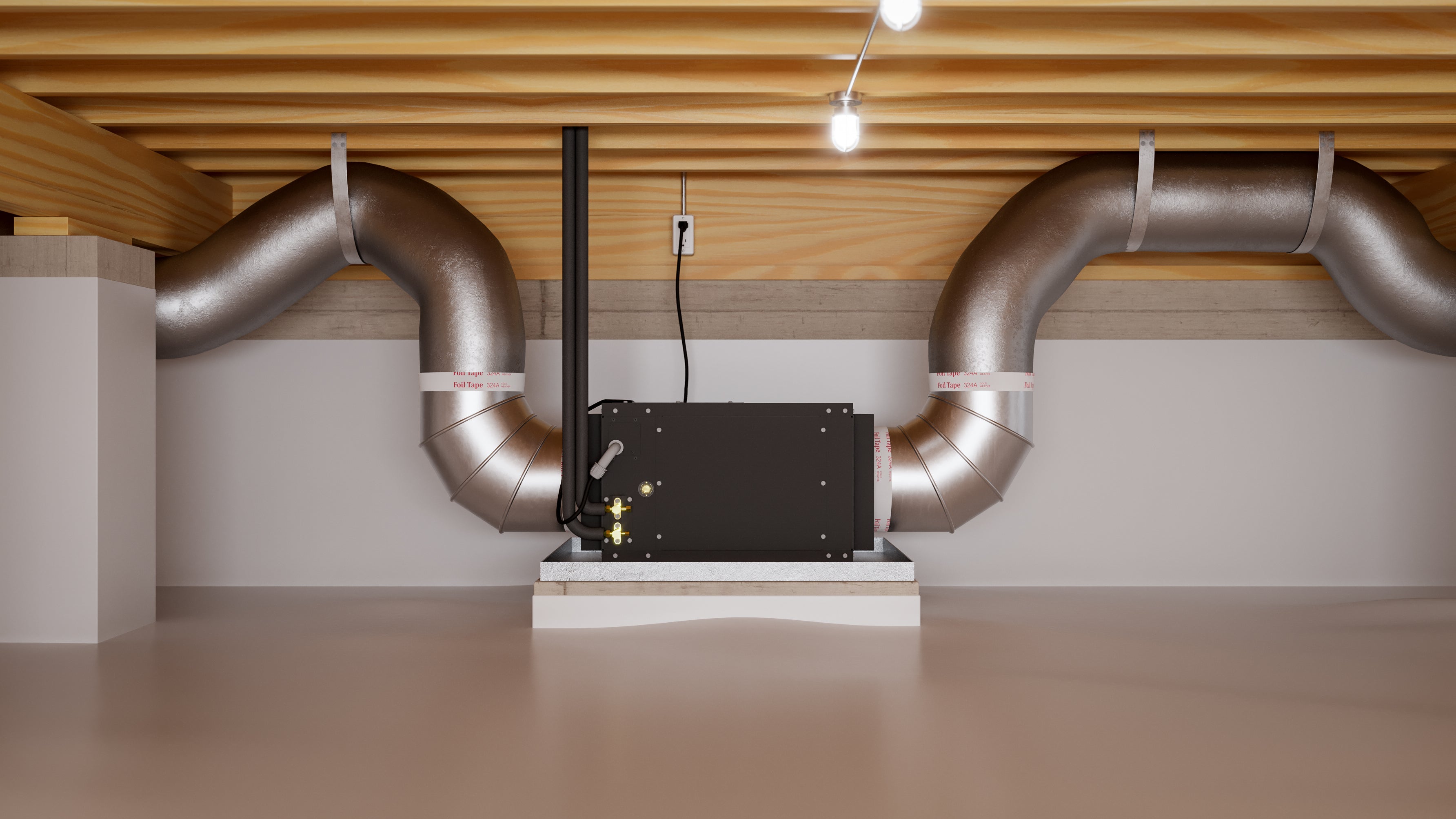

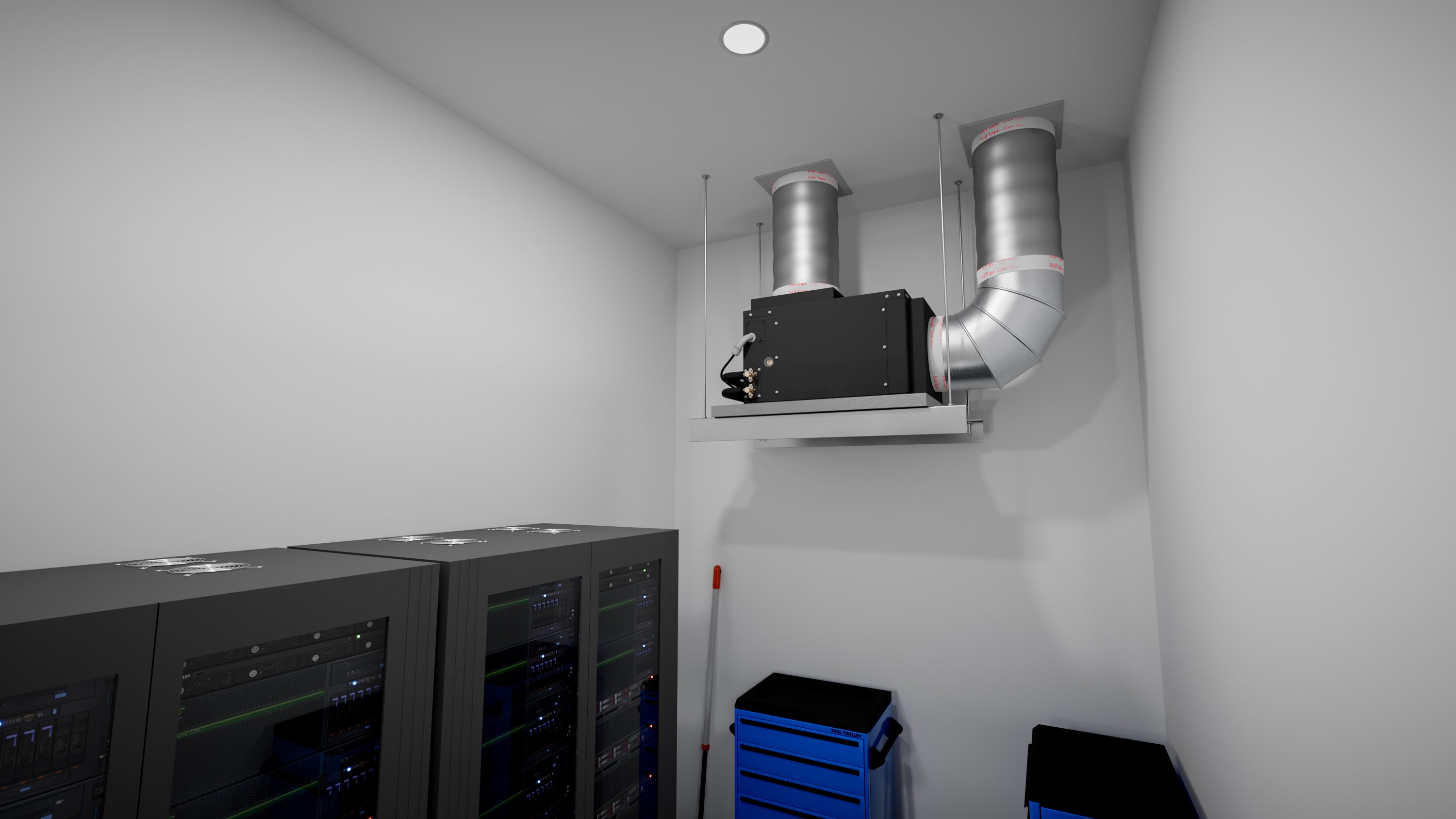

  • Flexible Installation Options
  • With the optional ducting kit, the unit can be ducted up to 25 feet away, and dual fan orientations support versatile placement and airflow customization.
  • Optional Ducting Kit
  • Allows the unit to be ducted up to 25 feet away, with dual fan orientations to provide installation flexibility and customized airflow.
  • Direct Replacement Compatibility
  • Direct replacement for existing Tecumseh or Copeland condensers, offering an efficient upgrade option for customers with existing pump-down systems.

The ΩMEGA 110V H.E. Condenser is WhisperKOOL’s innovative solution for high-performance, reliable wine cellar cooling. Designed for maximum energy efficiency and ease of installation, this condenser is ideal for diverse applications and environmental conditions. Engineered to reduce installation time, the ΩMEGA 110V H.E. Condenser features advanced components that ensure long-term, energy-efficient operation, allowing clients to save both time and money. Available in three capacity sizes—Mini, 4000, and 8000 series—the ΩMEGA 110V H.E. Condenser can meet a wide range of wine cellar cooling needs and directly replace Tecumseh or Copeland condensers.

Videos:

Dealer Limitations:

Customers are responsible for understanding the proper way to install this product. Wine Racks America does not assume responsibility for product failure due to installation out of compliance with manufacturer’s guidelines and instructions.

Returns & Exchanges:

All return inquiries must be within 30 days of purchase and are subject to a 25% restocking fee. Shipping costs are not refundable and the purchaser is responsible for all return shipping costs (including customs fees and duties).

WHISPERKOOL COOLING SYSTEM INSTALLATION TERMS & CONDITIONS

ATTENTION:

PLEASE READ THESE TERMS OF USE CAREFULLY BEFORE INSTALLING YOUR WhisperKOOL XLT/Extreme Cooling System. INSTALLING YOUR WhisperKOOL XLT/Extreme Cooling System INDICATES THAT YOU ACCEPT AND AGREE TO EACH OF THE TERMS AND CONDITIONS SET FORTH HEREIN (“TERMS OF USE”). IF YOU DO NOT ACCEPT THESE TERMS OF USE, YOU RISK VOIDING YOUR WARRANTY AND ASSUMING ADDITIONAL REPAIR AND REPLACEMENT COSTS.

1. ACCEPTANCE OF TERMS AND CONDITIONS

Use and installation of a WhisperKOOL XLT/Extreme Cooling System assumes that the consumer, (“user”) fully accepts and agrees to the Terms and Conditions set forth in this document. These Terms & Conditions also state that by signing and returning this document, you are certifying you have read, understand and agree to our Terms & Conditions as well as our Owners Manual. The Owner’s Manual is shipped with each unit and if another copy is needed, replacement copies can be downloaded from the company web site (www.vinotheque.com) or by contacting Vinotheque Wine Cellars (“Vinotheque”) directly for a new copy. Vinotheque reserves the right, in its sole discretion, to change its Terms & Conditions at any time, for any reason, without notice.

2. PRODUCT INSTALLATION

Subject to these Terms and Conditions, when the user purchases a WhisperKOOL XLT/Extreme Cooling System, the user agrees to read and follow the required installation procedures set forth by Vinotheque for proper use and installation of the Product.

(a) It is highly recommended that you obtain the assistance of a wine storage professional.

(b) Failing to address all of the variables associated with proper installation will cause the unit to operate incorrectly and limit its ability to cool and the longevity of the unit itself.

(c) The warranty card must be returned to Vinotheque, the manufacturer, to ensure registration guaranteeing the full warranty period is granted. Failure to register the Product within thirty (30) days of installation may result in a loss of warranty.

(d) The user is responsible for the full costs of installation and any additional parts required for the proper and complete installation of the Product.

(e) The WhisperKOOL XLT cooling system cannot operate at its optimum capacity if airflow is constricted by ducting or venting the exhaust side of the unit into a location with inadequate ventilation.

3. PRODUCT WARRANTY INFORMATION

If a problem arises with your WhisperKOOL system during the warranty period, you must contact Vinotheque Customer Service for warranty coverage and repairs.

Removing the rivets from the unit with out authorization from the manufacturer will VOID the warranty. Please contact a Customer Service Representative for assistance before beginning work on a WhisperKOOL unit that is still under the two (2) year manufacturer warranty

For XLT/Extreme Cooling Systems returned to Vinotheque following warranty guidelines, Vinotheque warrants this Product against defects in material or workmanship as follows:

(a) LABOR: For a period of two (2) years from the date of purchase. If this Product is determined to be defective after undergoing customer service trouble shooting, Vinotheque will repair or replace the Product, at its option and discretion, at no charge to the customer. After the Warranty Period, the customer is responsible for ALL labor and freight charges.

(b) PARTS: Vinotheque will supply, at no charge, new or rebuilt replacements parts in exchange for defective parts for a period of two (2) years.

(c) FREIGHT: During the first twenty four months from the date of purchase, Vinotheque will cover freight for the repair of units UNDER WARRANTY to customers within the continental United States.

This warranty does not cover cosmetic damage caused during installation or damage due to acts of God, accident, misuse, abuse, negligence, or modification of, or to any part of the Product. This warranty does not cover damage due to improper operation or lack of proper maintenance, connection to improper voltage supply, or attempted repair by anyone other than a Vinotheque approved technician to service the Product. This warranty does not cover Products sold AS IS or WITH ALL FAULTS. This warranty is valid only in the United States.

Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence that the Product is within the warranty period, must be presented to obtain warranty service. This warranty is invalid if the factory-applied serial number has been altered or removed from the Product.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VINOTHEQUE SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may have other rights, which vary from state to state.

4. MAINTENANCE

It is the user’s responsibility to clean off any accumulated dust, lint, or other debris from the front and rear intake grills. This will restrict the airflow and may affect the unit’s ability to function properly. Periodically cleaning the unit’s vents will help assure maximum cooling efficiency. The drain tube must also be checked and kept clean and free of debris and mold to maintain proper performance.

Mold is a natural living organism in the environment. It exists in the air in the form of microscopic spores that move in and out of buildings through doors, windows, vents, HVAC systems and anywhere else that air enters. Once it is discovered, mold must be addressed quickly and appropriately. Delayed or improper treatment of mold issues can result in costly and reoccurring repairs. If you suspect you have a mold problem, it is always best to hire a qualified and experienced mold remediation specialist.

5. USER COSTS AND RESPONSIBILITY

The following items are not covered under warranty and are the sole responsibility of the user.

(a) The user is responsible for the costs of ALL initial installation costs, including but not limited to labor costs and the cost of any additional parts necessary to complete the installation.

(b) The user is responsible for the costs incurred for installation and removal of the product or any part thereof unless it is has been defined as a warranty repair PRIOR to the work being performed.

(c) Purchasers (users) are reminded that they should satisfy themselves that the product they are purchasing is suitable for their needs and requirements and no responsibility will be placed with Vinotheque for their decisions.

(d) It is the user’s responsibility to secure safe haven/storage for ANY AND ALL items that are being kept and stored in the user’s wine cellar. Vinotheque takes no responsibility for the safety and preservation of the aforementioned items in the event that the environment becomes unsuitable to maintain a proper storage environment.

6. STATE SALES TAX

Wine Racks America is required to charge sales tax in applicable states. For questions please contact our customer service team.

7. CUSTOMER SERVICE

Vinotheque customer service department is available Monday through Friday, from 8:00 a.m. to 4:00 p.m. PST and is reachable by calling 1-800-343-9463 during the previously mentioned business hours.

8. TROUBLE SHOOTING

The customer service department is available to answer any questions or inquiries regarding our Product as well as to assist in doing basic and primary trouble shooting for any problems with our Product.

9. GENERAL PROVISIONS

(a) Construction and severability. Every provision of these Terms and Conditions will be construed, to the extent possible, so as to be valid and enforceable. If any provision of these Terms and Conditions so construed is held by a court of competent jurisdiction to be invalid, illegal or otherwise unenforceable, such provision will, to the extent so held, be deemed severed from these Terms and Conditions, and all other provisions will remain in full force and effect.

(b) Governing Law/Choice of Forum. The laws of the State of California (without regard for conflicts of law) shall govern the construction and enforcement of these Terms and Conditions, except that the Terms and Conditions shall be interpreted as through drafted jointly by Vinotheque and the Purchaser. Any dispute will be resolved in a state or federal court situated in the County of Santa Clara, State of California, and the Purchaser hereby irrevocably submits to the personal jurisdiction of such courts for that purpose.

(c) Entire Agreement/No Waiver. These Terms and Conditions and the Limited Warranty incorporated herein by reference set forth the entire agreement between the parties and supersede all prior agreements or understandings, both written and oral, between the parties regarding the subject matter of this the Terms and Conditions and the Limited Warranty. The parties may modify this these Terms and Conditions or the Limited Warranty only through a writing signed by each. No waiver by Vinotheque of any breach or default hereunder will be deemed to be a waiver of any preceding or subsequent breach or default.

(d) Correction of Errors and Inaccuracies. These Terms and Conditions may contain typographical errors or other errors or inaccuracies. Vinotheque reserves the right to correct any errors, inaccuracies or omissions, and to change or update these Terms and Conditions, at any time without prior notice.
