Extreme ti Ducting Collar
SKU: TIDUCTKIT-35CO
Extreme ti Ducting Collar
Extreme ti Ducting Collar

Extreme ti Ducting Collar

SKU: TIDUCTKIT-35CO
Regular price
Price :
$385.00
/
Est. ship date
Need Help? Call and Talk to an Expert Now

Description

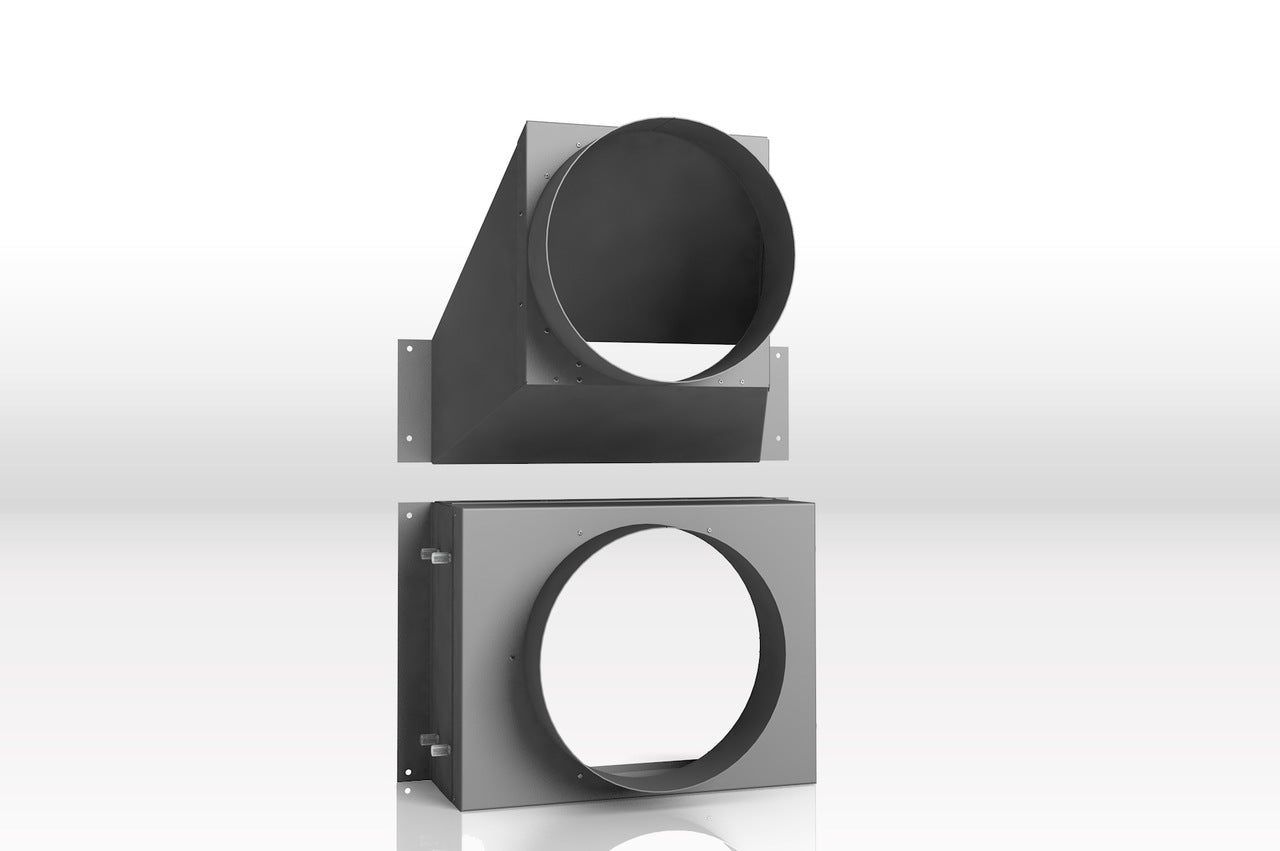

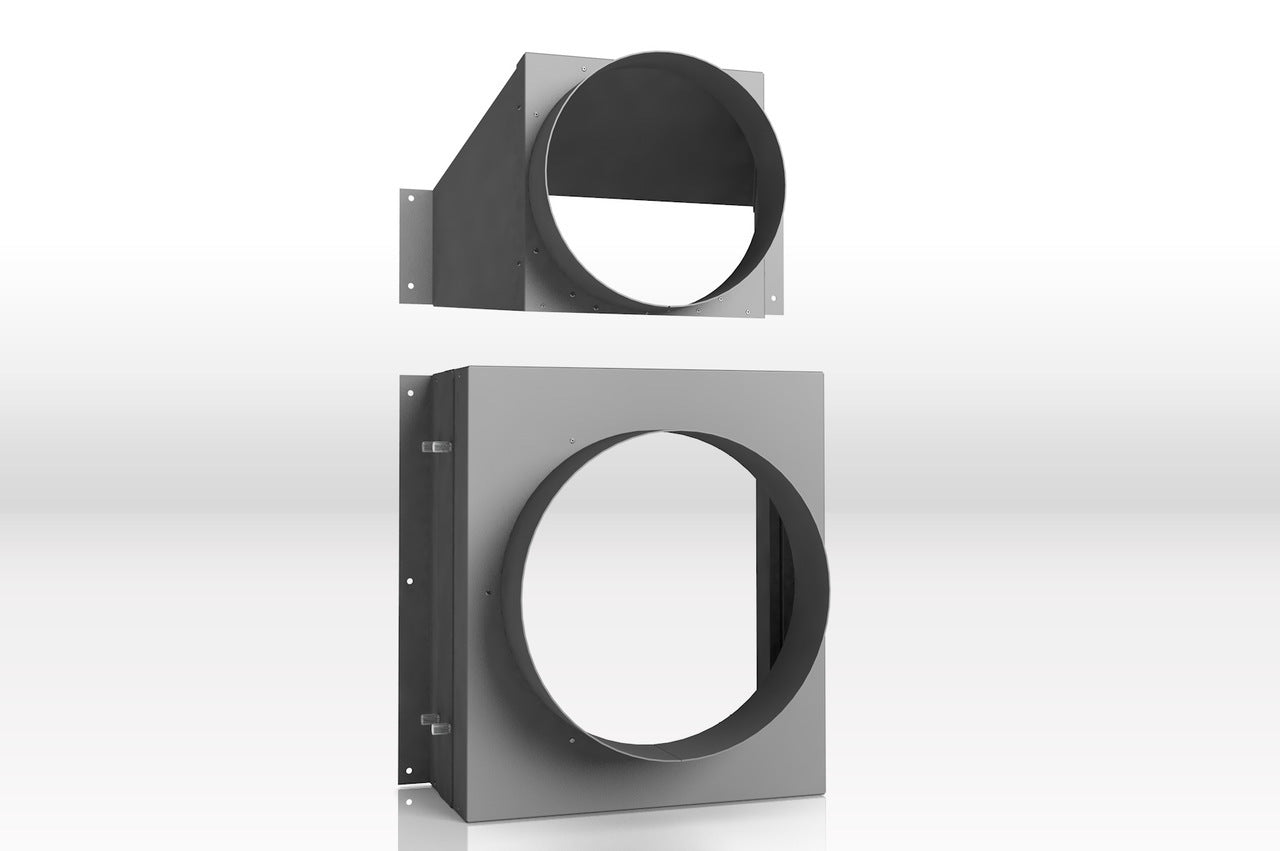

The ventilation system on the WhisperKOOL Extreme Series is ideal for ducting. The optional duct collars fit standard 8" ventilation ducting, allowing the installer to vent air to and from the unit for optimum performance. Use ductwork to connect the unit to the supply and return outlets in the wine cellar. Use only insulated ductwork to minimize cooling losses, prevent sweating, and reduce noise. Use ductwork on the condenser section to redirect or absorb sound, bring in outside air to the unit inlet, and/or exhaust the hot air out of the ambient space.

Features:

  • For both evaporator and condenser sides
  • Fits standard 8? ducting
  • Use with insulated ducting
  • For Extreme units

Additional Information

1/2 DUCTING

This setup is used when you want to hide your unit from view and can safely exhaust your unit indoors.

Venting the unit in this fashion would be an ideal setting for a garage, where the hum of operating the unit would not be heard.

3/4 DUCTING

This setup is used when you want to hide your unit from view, and you would like to exhaust your unit outdoors.

This setup is ideal for a laundry or a storage room, where noise isn’t an issue and the condenser intake can be left unducted.

FULL DUCTING

This setup is ideal for an attic where you want to hide your unit from view, and need to exhaust and pull fresh air in from outdoors.

The fully ducted system is the most versatile setup, as you can place it almost anywhere within 50 feet of supply and return.

GENERAL DUCTING INFORMATION

Use ductwork to connect the unit to the supply and return outlets in the wine cellar. Use only insulated ductwork to minimize cooling losses, prevent sweating, and reduce noise. Use ductwork on the condenser section to redirect or absorb sound, bring in outside air to the unit inlet, and/or exhaust the hot air out of the ambient space.

Note:

Do not exceed a total of 25 feet for each length of ductwork run and a total of 50′ combined for both the supply and return lengths.

Avoid crimping the flexible ducts. This chokes down the inside area and reduces the airflow causing the unit to operate irradically. Be sure all ducts and surfaces in contact with the airflow are insulated and have a vapor barrier on the outside. Uninsulated ducts and surfaces cause bare, exposed metal surfaces to sweat, further degrading the insulation and equipment cooling capacity.

  • Provide support for the flexible duct to prevent sags and bends
  • Stretch out the duct to make a smoother interior, reducing air resistance
  • For 90° bends, use a 90° adjustable elbow
  • Do not squeeze or reduce the inside diameter of the ducts, which reduces airflow
  • Use short and straight ductwork where possible
  • Remove the grilles and panels from the openings to connect the ductwork
  • Check that all fan blades move freely
  • Keep air paths free of loose foreign objects
  • Connect the round flexible ducts to the WhisperKOOL Extreme using the duct collars provided with the duct accessory kit
  • Pull the outer plastic wrapping and insulation away from the end of the duct to expose the reinforced inside duct liner
  • Fasten the duct collar using tie straps or clamps around the inside liner
  • Secure the duct collar to the unit using the screws provided. Take care to not damage or bend the gasket
  • Use approved duct tape to seal all joints
